MACHINE SPECIFICATIONS

DMG MORI

https://en.dmgmori.com/
https://us.dmgmori.com/

(HTC) Millturn

CTX beta 1250 TC

counterspindle(Series CTX TC)

HTC（MillTurn）（2 Spindle+1 MS)

Category	Item	Specification
Capacity	Swing over bed[mm]	500
Workpiece	Workpiece diameter[mm]	390
	Workpiece length[mm]	800
Turning spindle 1(S1)	Barworking dia.[mm]	65 76
Travels	Stroke X[mm]	450
	Stroke Y[mm]	200
	Stroke Z[mm]	1300
	Stroke B[deg]	220
	Rapid traverse(X)[m/min]	30
	Rapid traverse(Y)[m/min]	30
	Rapid traverse(Z)[m/min]	30 60
	Rapid traverse(B)[r/min]	70
Table	Table Size[mm]	D250 D315
Category	CNC brand	Siemens

Milling spindle 1(H1)

Spindle name
Taper	HSK63A Capto C6
Rotational speed[rpm]	12000
Power[kW]	22
Torque[Nm]	100
Transmission

Tool Magazine 1

Tool holder taper
No. of tool storage[ea]	24/48
Tool diameter[mm]	80
Tool length[mm]	300
Tool weight[kg]	5
Tool change time(TTT)[s]
Tool change time(CTC)[s]

*A: Max. tool diameter (with adjacent tools), B: Max. tool diameter (without adjacent tools)

Turning spindle 1(S1)

Spindle name
Speed[r/min]	5000
Interface(S1)	170 Available chucks
Turning spindle thru hole dia.[mm]
Output[kW]	25！34
Torque[Nm]	280！380
Transmission

Turning spindle_2(S2)

Spindle name	ISM52	beta
Speed[rpm]	6000
Interface(S2)	140
Output[kW]	15/20
Torque[kW]	95/127
Transmission[kW]	IntegratedSpindle

Guide way

Axis	X	Y	Z
Guide way	LMG	LMG	LMG
Qty	45	2	2

Linear axes drive

Axis	X	Y	Z
Drive	Ball screw	Ball screw	Ball screw
Qty	1	1	1

Comparison

CTX TC Series

Model	Chuck size(S1)	Workpiece diameter	Workpiece length	Origin
CTX beta 800 TC (HTC) Millturn		500	800
CTX beta 800 TC (HTC) Millturn		500	800
CTX beta 1250 TC (HTC) Millturn		390	800
CTX beta 1250 TC (HTC) Millturn		390	800
CTX beta 1250 TC 4A (HTC) Millturn		390	800
CTX beta 2000 TC (HTC) Millturn		550	1910
CTX beta 2000 TC (HTC) Millturn		550	2050
CTX gamma 1250 TC (HTC) Millturn		630/700	1160
CTX gamma 1250 TC (HTC) Millturn		630/700	1300
CTX gamma 2000 TC (HTC) Millturn		630/700	1910
CTX gamma 2000 TC (HTC) Millturn		630/700	2050
CTX gamma 3000 TC (HTC) Millturn		630(DiskMagazine)/700(ChainMagazibe)	3000

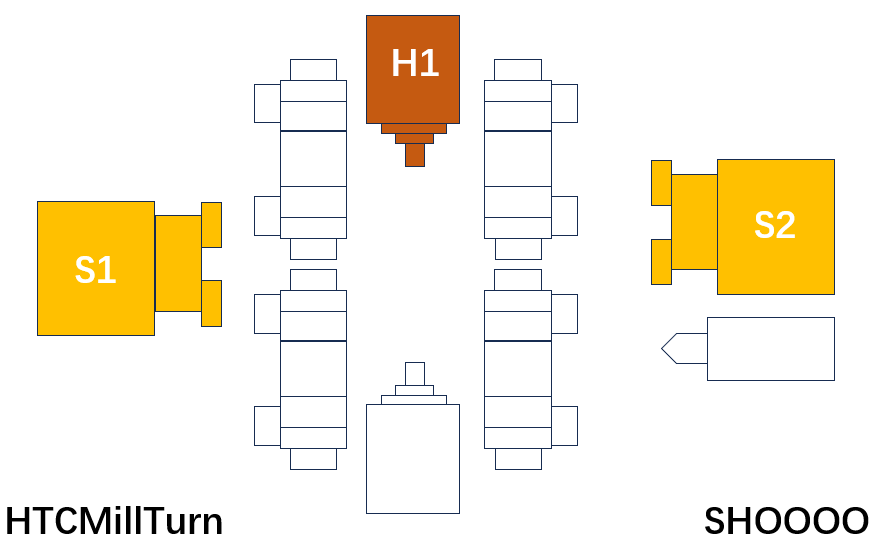

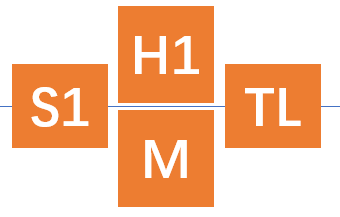

S1:Main-spindle S2:Sub-spindle TL:Tailstock H1:Mill-spindle T:Turret with static-tools M:Turret with driven-tools Y:Turret with Y-axis B:Turret with B-axis P:Gang with static-tools Q:Gang with driven-tools R:Gang with Y-axis

DMG MORI Product Line Up
Series

Not responsible for misprints or data errors. Actual product appearance may differ.
