PUMA TT1300SY | DN Solutions(Doosan Korea)

Basic specifications

Category	Item	Specification
Capacity	Swing over bed[mm]	175
	Swing over saddle[mm]	175
Workpiece	Workpiece diameter[mm]	175
	Workpiece length[mm]	120
	Max. Workpiece Diameter（Tool Post #1)[mm]	175
	Max. Workpiece Diameter（Tool Post #2)[mm]	175
Chuck	Chuck size(S1)[in]	5
	Optional chucks(S1)[in]	6
Turning spindle 1(S1)	Barworking dia.[mm]	42
Tool post 1(T1)	No. of tool stations[ea]	12 24
Travels	Stroke X[mm]	135(T1)!145(T2)
	Stroke Y[mm]	80(T1)
	Stroke Z[mm]	530(T1)!530(T2)
	Stroke C[deg]	360(S1)!360(S2)
	Rapid traverse(X)[m/min]	30
	Rapid traverse(Y)[m/min]	15
	Rapid traverse(Z)[m/min]	40
	Rapid traverse(C)[r/min]	600
Table	Workpiece allowable Load[kg]	30
	Table Size[mm]	D130 D210
Category	CNC brand	Fanuc
	CNC system	DOOSAN FANUC i Series FANUC 31i
	Origin	Korea

Turning spindle 1(S1)

Spindle name	S1-1
Turning spindle no. 1 max. speed[r/min]	6000
Bearing inner dia.(front)[mm]	80
Interface(S1)	A2-5 Available chucks
Turning spindle 1 thru hole dia.[mm]	53
Output[kW]	5.5(S1 Cont)！7.5(S3 60%)！11(S3 25%)
Torque[Nm]	93

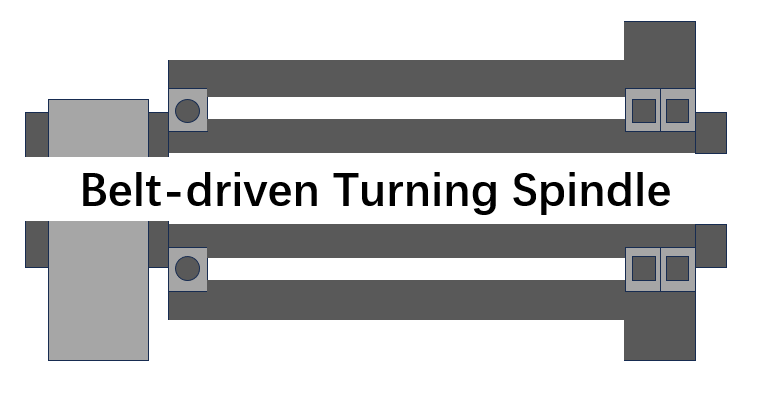

Turning spindle 1 transmission	Belt driven
